Smart Focus
Smart Focus – Pure energy!
Kjellberg’s newest plasma cutting machine series, Smart Focus, is a more affordable alternative to the long-established Hi Focus series. While Hi Focus is known for its astonishing cutting quality and versatility — and none of our customers have ever been disappointed with its performance — Smart Focus now offers an attractive option for a wider range of applications.

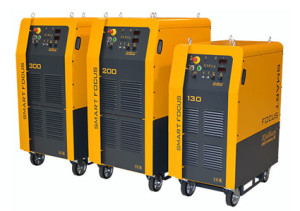

Smart Focus is the most versatile automatic plasma cutting system on the market, suitable for nearly all sectors of the metal fabrication industry. It is designed for advanced CNC-controlled cutting and can handle electrically conductive materials up to 80 mm thick. The system is easy to operate, has low maintenance requirements, and excellent accessibility for servicing. Long consumable life is achieved through dual gas ignition and a nozzle-saving swirl gas pierce technology.
- Recommended cutting range: 1 – 60 mm
- Max pierce thickness: 40 mm
Contour Cut and Contour Cut Speed
With Smart Focus, you gain access to patented plasma cutting technologies — Contour Cut and Contour Cut Speed — which are optimized for cutting precision-shaped components from structural steel.
- Dimensionally accurate contour parts with Contour Cut
- Up to 50% faster cutting speeds with Contour Cut Speed
- High-quality surface finish and minimal angular deviation
- Excellent repeatability with tighter tolerances
- No post-processing required
- Improved productivity at lower operating costs
Plasma torch
- PerCut 4000 mechanized torch with quick-change heads and integrated initial height sensing
- Significantly lower gas consumption thanks to improved cooling of consumables
- Cutting and marking with the same components
- Bevel cutting up to 50° angles using standard parts
Gas consoles
- PGE-300: Manual gas control console for all gases
- PGV-300: Automatic gas control unit with pre-programmed database and remote control interface Compatible with Burny CNC controls.
